CAD Moldings by Style

Classic Colonial Moldings

Classical Colonial Style

ProfilesSku'sNet SizesDXFDWG
WOCM001WOCM001
3/4" x 3-19/32".DXF.DWG
WOCM002WOCM002
3/4" x 4-5/16".DXF.DWG
WOCM003WOCM003
1-5/8" x 4".DXF.DWG
WOCS001WOCS001
3/4" x 5-1/2".DXF.DWG
WOBB001WOBB001
7/8" x 1-3/4".DXF.DWG
WOCH001WOCH001
1-5/8" x 2-1/4".DXF.DWG
WOBM001WOBM001
1-3/16" x 8-1/4".DXF.DWG
cla_col_crown_bucornice buildup
7-15/16" x 8-1/4".DXF.DWG
cla_col_casing_bucasing buildup
1-5/8" x 5-1/2".DXF.DWG
zip_iconClassical Colonial Style
(all profiles).DXF.DWG

WOCM001, 3/4" x 3-19/32", Crown 1 by WindsorONE
WOCM002, 3/4” x 4-5/16", Crown 2 by WindsorONE
WOCM003, 1-5/8" x 4", Crown 3 by WindsorONE
WOCS001, 3/4" x 5-1/2", Casing by WindsorONE
WOBB001, 7/8" x 1-3/4", Back Band by WindsorONE
WOCH001, 1-5/8" x 2-1/4", Chair Rail by WindsorONE
WOBM001, 1-3/16" x 7-1/4", Base Molding by WindsorONE

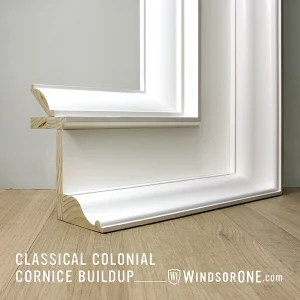

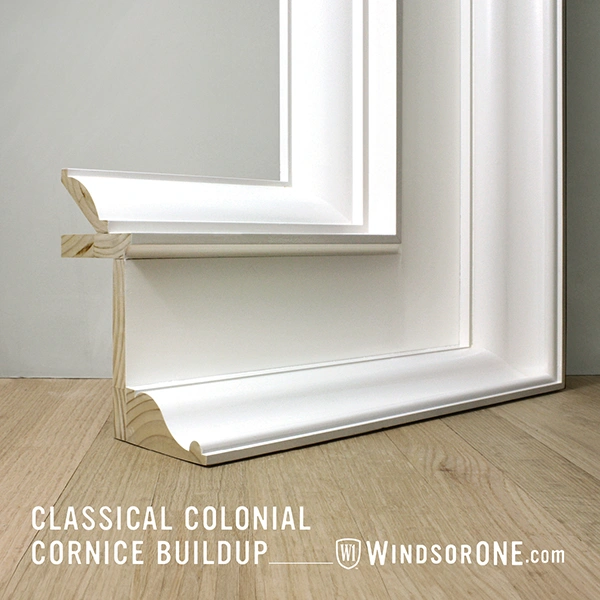

Classical Colonial Cornice - WOCM001, WOCM002, 1X6 S4SSE, WOCM003 by WindsorONE

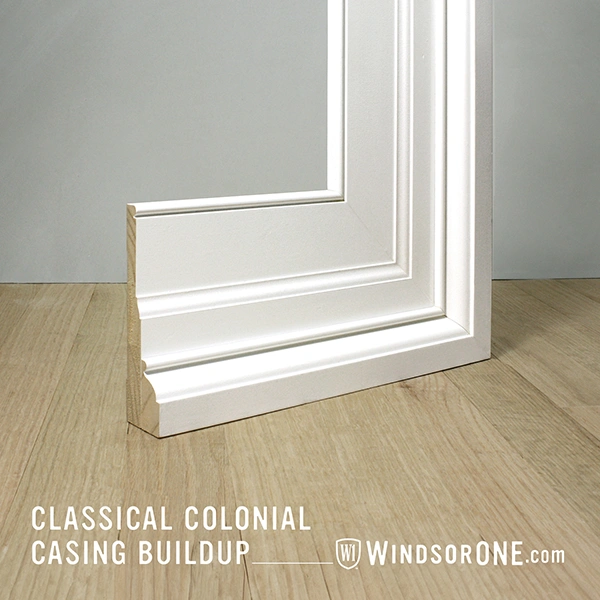

Classical Colonial Casing - WOCS001, WOBB001 by WindsorONE
Greek Revival Moldings

Greek Revival Style

ProfilesSKUsNet SizesDXFDWG
WOCM004WOCM004
1-1/16" x 4".DXF.DWG
WOCS007WOCS007
3/4" x 3-1/2".DXF.DWG
WOBB002WOBB002
3/4" x 3/4".DXF.DWG
WOWS001WOWS001
1-1/16" x 4-1/2".DXF.DWG
WOCV001WOCV001
3/4" x 7/8".DXF.DWG
WOBM002WOBM002
3/4" x 5-1/2".DXF.DWG
grk_rev_crown_bucrown buildup
3-3/8" x 3-15/16".DXF.DWG
grk_rev_casing_bucasing buildup
1-1/2" x 4-1/4".DXF.DWG
grk_rev_stool_bustool buildup
4-9/16" x 4-1/2".DXF.DWG
zip_iconGreek Revival Style
(all profiles).DXF.DWG

WOCM004, 1-1/16" x 4", Crown by WindsorONE
WOCS007, 3/4" x 3-1/2",Single Beaded Casing by WindsorONE
WOBB002, 3/4" x 3/4", Back Band by WindsorONE
WOWS001, 1 1/16" x 4-1/2", Window Stool by WindsorONE
WOCV001, 3/4" x 7/8", Cove Molding by WindsorONE
WOBM002, 3/4" x 5-1/2", Base Molding by WindsorONE
Greek Revival Crown - 1x S4SSE, WOCM004 by WindsorONE
Greek Revival Casing - WOCS007, WOBB002, 1X2 S4SSE by WindsorONE
Greek Revival Stool - WOWS001, WOCS007, WOCV001 by WindsorONE
Classic Craftsman Moldings

Classical Craftsman Style

ProfilesSKUsNet SizesDXFDWG
WOCM005WOCM005
3/4" x 4-9/16".DXF.DWG
WOPM004WOPM004
3/4" x 1-3/4".DXF.DWG
WOHC001WOHC001
1-5/16" x 2-1/4".DXF.DWG
WOST001WOST001
7/16" x 1-1/16".DXF.DWG
WOCS003WOCS003
3/4" x 4-1/4".DXF.DWG
WOWS002WOWS002
1-1/16" x 4-1/4".DXF.DWG
WOCV001WOCV001
3/4" x 7/8".DXF.DWG
WOCS004WOCS004
3/4" x 3-9/16".DXF.DWG
WOPBOO1WOPB001
1-3/8" x 8".DXF.DWG
WOBM003WOBM003
3/4" x 7-1/4".DXF.DWG
WOBS001WOBS001
1/2" x 3/4".DXF.DWG
cla_cra_header_buheader buildup
2-1/4" x 6-1/4".DXF.DWG
cla_cra_stool_bustool buildup
4-5/8" x 4-1/4".DXF.DWG
cla_cra_base_bubase buildup
1-1/4" x 7-1/4".DXF.DWG
zip_iconClassical Craftsman Style
(all profiles).DXF.DWG

WOCM005, 3/4" x 4-9/16", Crown by WindsorONE
WOPM004, 3/4" x 1-3/4", Picture Mold by WindsorONE
WOHC001, 1-5/16" x 2-1/4", Header Cap by WindsorONE
WOST001, 7/16" x 1-1/16", Stop Mold by WindsorONE
WOCS003, 3/4" x 4-1/4", Casing by WindsorONE
WOWS002, 1-1⁄16" x 4-1⁄4", Window Stool by WindsorONE
WOCV001, 3/4" x 7/8", Cove Molding by WindsorONE
WOCS004, 3/4" x 3-9/16", Apron by WindsorONE
WOPB001, 1-3/8" x 8", Plinth Block by WindsorONE
WOBM003, 3/4" x 7-1/4", Base Molding by WindsorONE
WOBS001, 1/2" x 3/4", Base Shoe by WindsorONE
Classical Craftsman Header - WOHC001, 1x5 S4SSE, WOST001 by WindsorONE
Classical Craftsman Stool - WOWS002, WOCV001, WOCS004 by WindsorONE
Classical Craftsman Base - WOBM003, WOBS001 by WindsorONE
Colonial Revival Moldings

Colonial Revival Style

ProfilesSKU'sNet SizesDXFDWG
WOCM006WOCM006
3/4" x 4-9/16".DXF.DWG
WOST004WOST004
1/2" x 1-7/8".DXF.DWG
WOPM004WOPM004
3/4" x 1-3/4".DXF.DWG
WOCS005WOCS005
1-3/6" x 4-3/8".DXF.DWG
WOWS001WOWS001
1-1/16" x 4-1/2".DXF.DWG
WOCS006WOCS006
3/4" x 3-9/16".DXF.DWG
WOBM004WOBM004
3/4" x 7-1/4".DXF.DWG
WOBS001WOBS001
1/2" x 3/4".DXF.DWG
col_rev_cornice_bucornice buildup
5-1/16" x 10-5/16".DXF.DWG
col_rev_stool_bustool buildup
4-1/2" x 4-5/8".DXF.DWG
col_rev_stool_bubase buildup
1-1/4" x 7-1/4".DXF.DWG
zip_iconColonial Revival Style
(all profiles).DXF.DWG

WOCM006, 3/4" x 4-9/16", Crown Molding by WindsorONE
WOST004, 1/2" x 1-7/8", Stop Molding by WindsorONE
WOPM004, 3/4" x 1-3/4", Picture Mold by WindsorONE
WOCS005, 1-3/16" x 4-3/8", Casing by WindsorONE
WOWS001, 1 1/16" x 4-1/2", Window Stool by WindsorONE
WOCS006, 3/4" x 3-9/16", Apron by WindsorONE
WOBM004, 3/4"x 7-1/4", Base Molding by WindsorONE
WOBS001, 1/2" x 3/4", Base Shoe by WindsorONE
Colonial Revival Cornice - WOST004, WOCM006, WOPM004 by WindsorONE
Colonial Revival Stool - WOWS001, WOCS006 by WindsorONE
Colonial Revival Base - WOBM004, WOBS001 by WindsorONE
Wainscot Caps & Panel Molding

Wainscot Caps & Federal Panel Molding

ProfilesSKUsNet SizesDXFDWG
WOWC002WOWC0021-1/8" x 3".DXF.DWG
WOWC003WOWC0031-3/8" x 1-3/4".DXF.DWG
WOWC006WOWC0061-5/8" x 2-5/8".DXF.DWG
WOSP001WOSP0017/8" x 1-1/4".DXF.DWG
zip_iconWainscot Caps & Panel Mold(all profiles).DXF.DWG

WOWC002, 1-1/8" x 3", Wainscot Cap by WindsorONE
WOWC003, 1-3/8" x 1-3/4", Wainscot Cap by WindsorONE
WOWC006, 1-5/8" x 2-5/8", Wainscot Cap by WindsorONE
WOSP001, 7/8" x 1-1/4", Federal Panel Mold by WindsorONE
